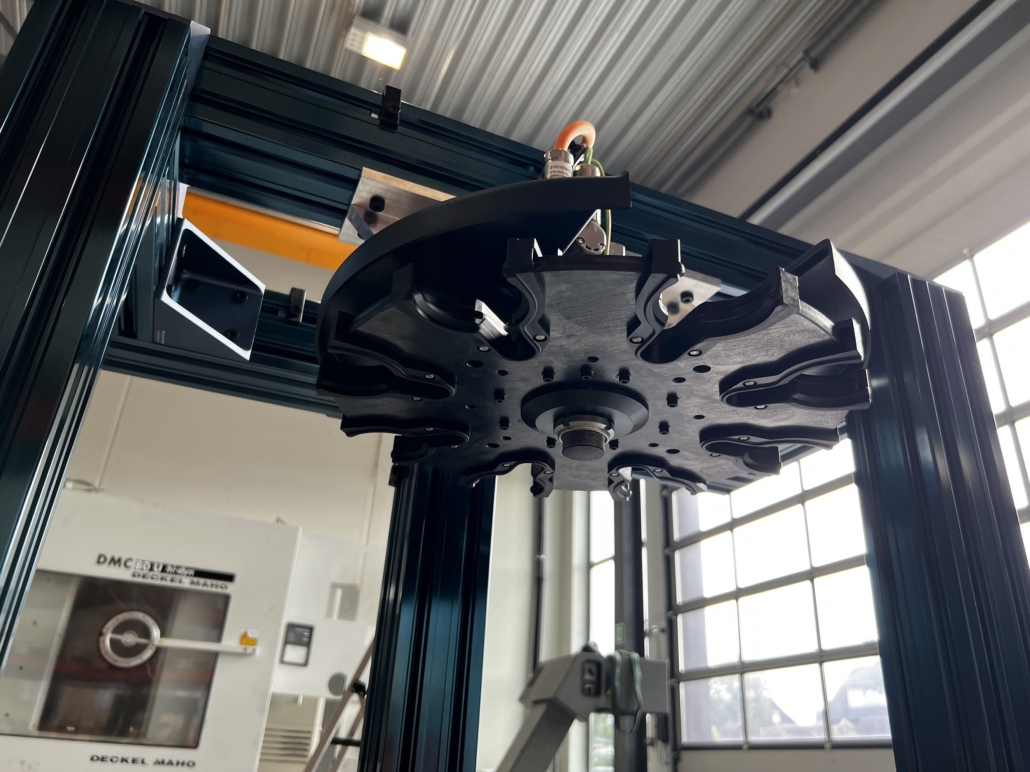

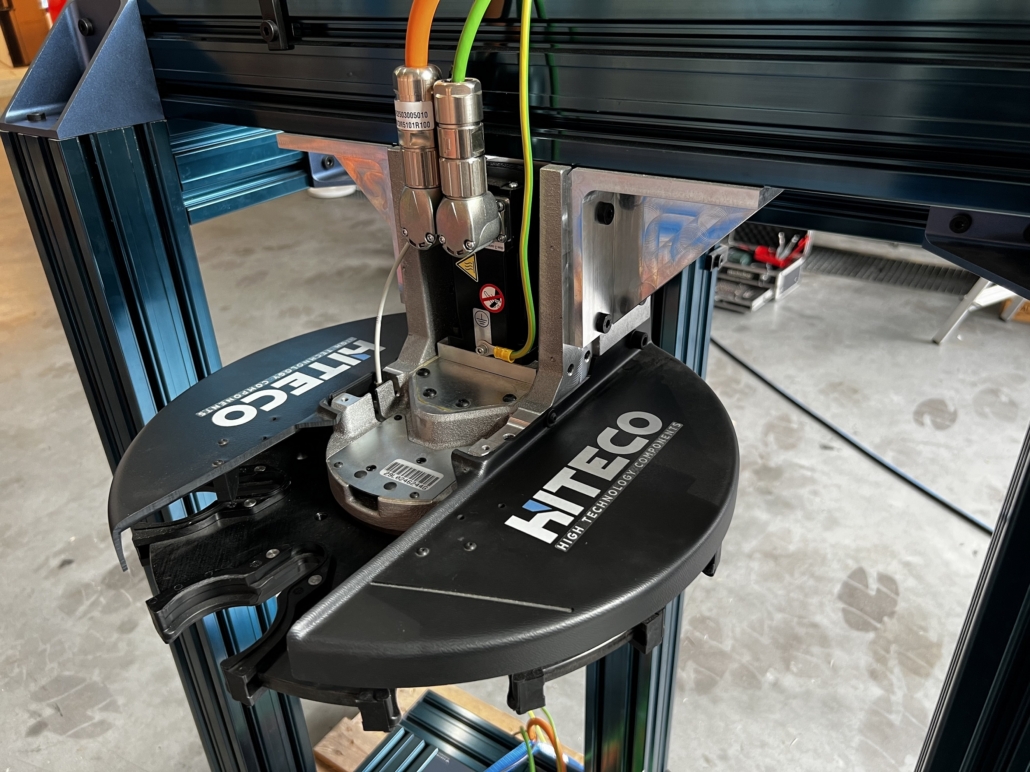

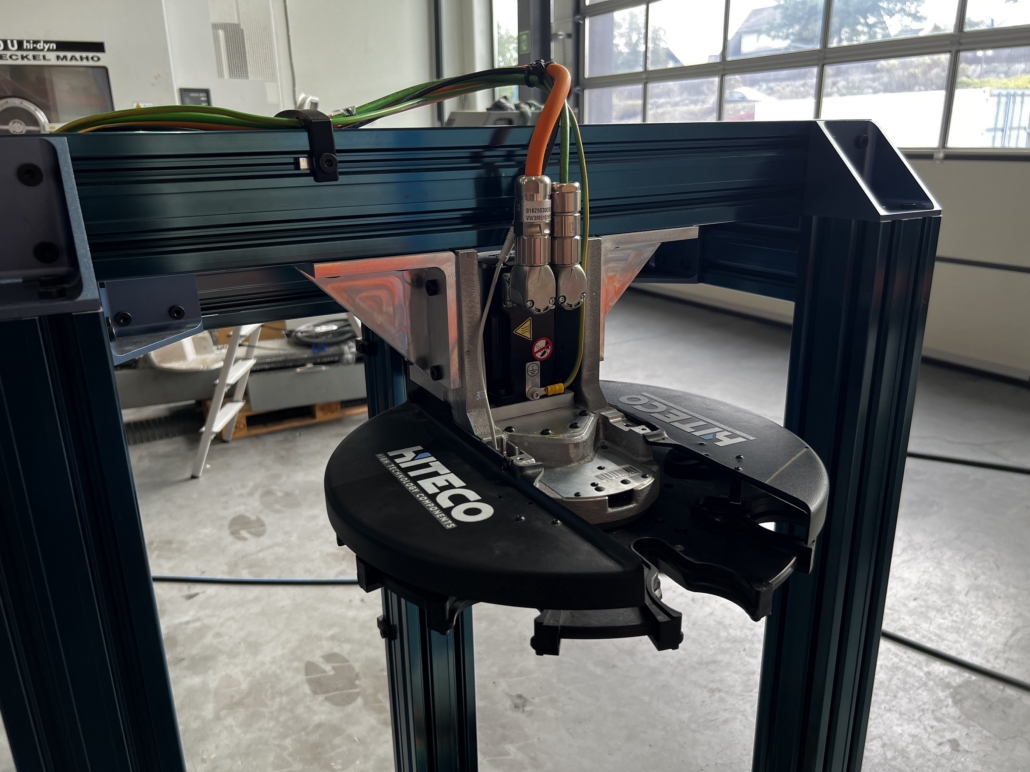

HITECO TOOL CHANGER RAPID8 HSK63 D340

Technical specifications. Positions: 8. Tools center diameter: 340mm. Tools center distance: 130mm. Single tool weight: 6kg. Total weight max: 25kg. Motor: Schneider Lexium BMH0701P16A2A. Rated torque: 1.3Nm. Max torque: 4.2Nm. Motor rated speed: 5500 RPM. Motor max speed: 8000 RPM. Power: 0.75 kW. Gear ratio: 36. Design disc rotation speed: 25 RPM. Working position: Vertical. Byggeår: 2015. Modell: RAPID8 HSK63 D340.
