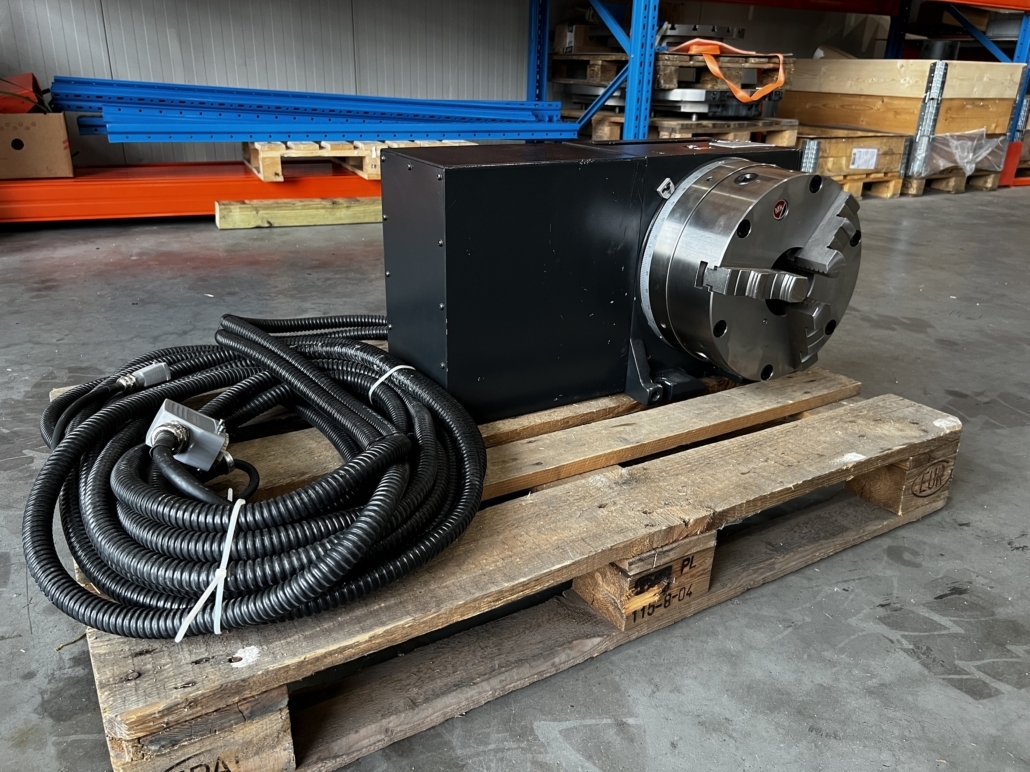

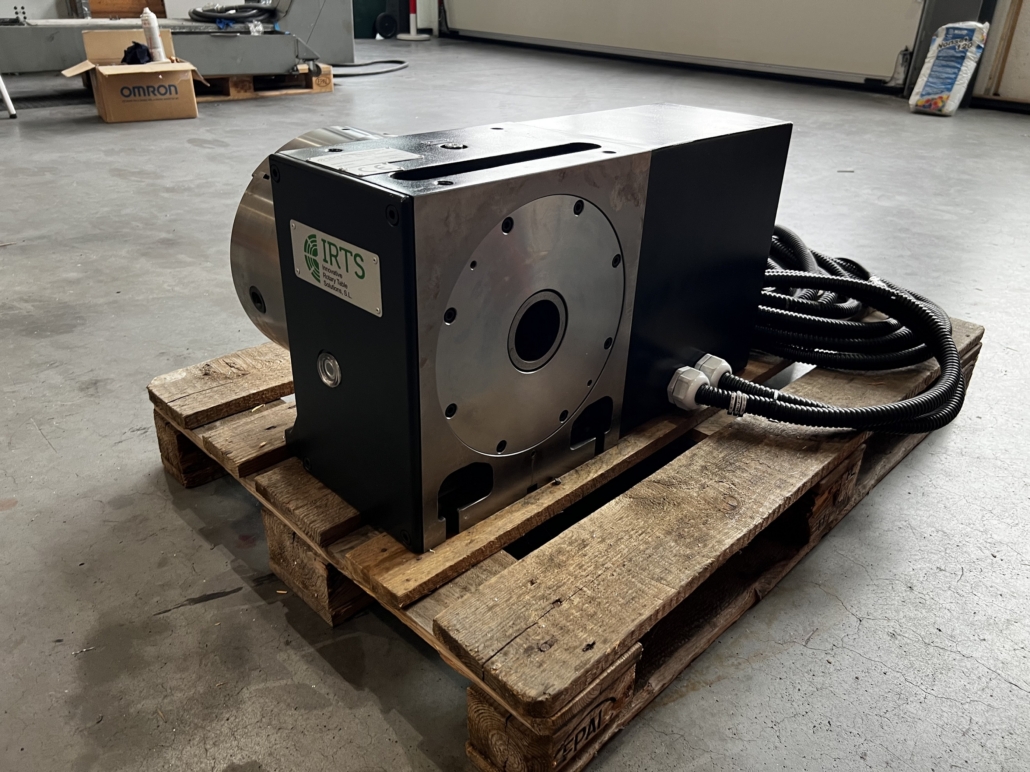

IRTS TB

Tekniske spesifikasjoner. Faceplate diameter: Ø320mm. Faceplate T slot width: Central 14H7 / Rest 14H12. Plate height: 290mm. Center height: 210mm. Through bore: 60mm. Guide block width: 18h6mm. Clamping distance to table: 125mm. Standard configuration: Horizontal axis (vertical plate). Indexing accuracy: ±30″. Repeatability: ±1″. Main bearing: YRT150. Work load HA: 250kg. Work load with tailstock: 500kg. Net weight: 400kg. Digital servo motor: TSM1814 N8234 E723. Byggeår: 2021. Modell: TB320H60H-L.
