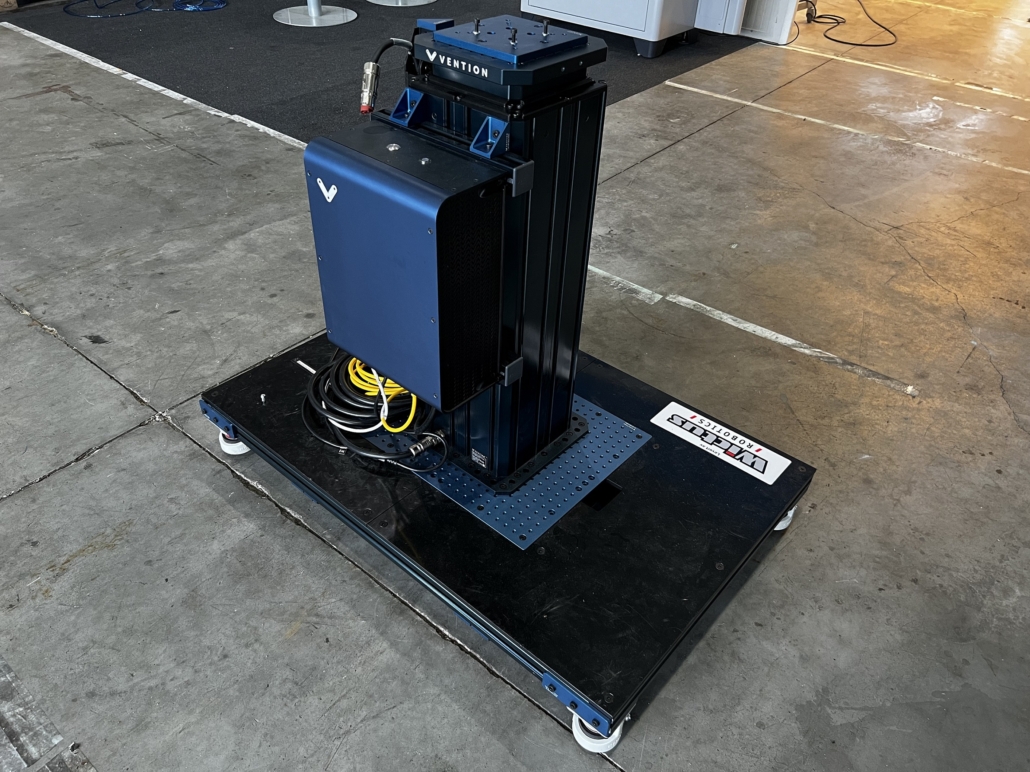

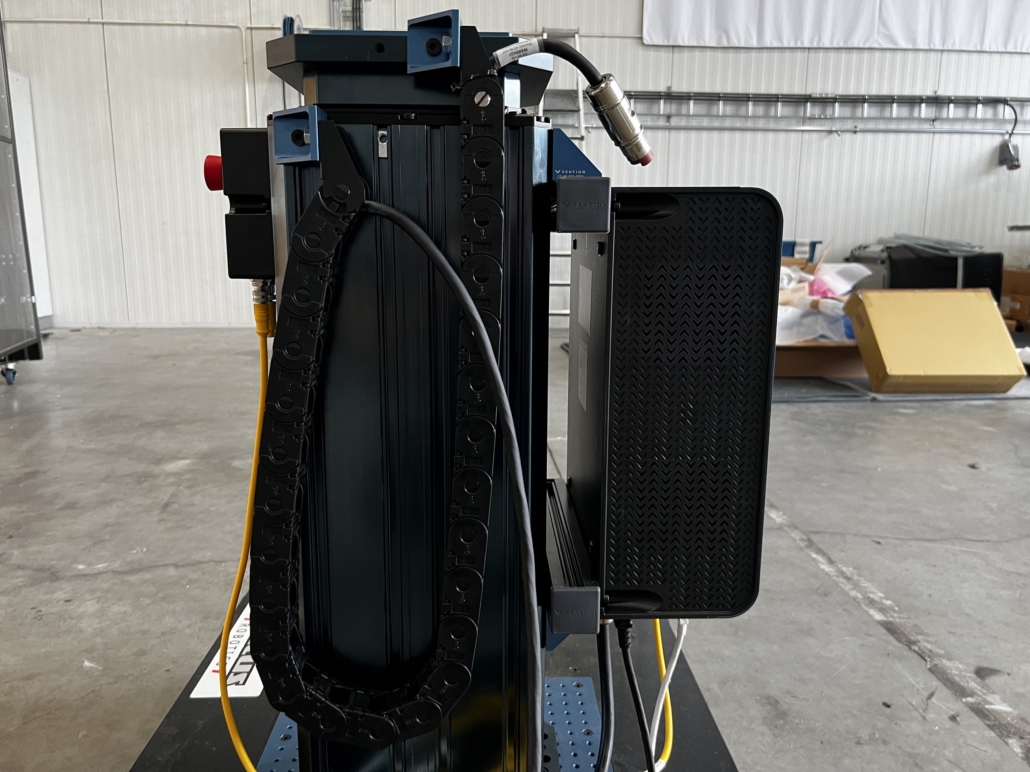

VENTION Telescopic Lift Column

Tekniske spesifikasjoner. Accuracy from homed position: +/- 0.5 mm. Back drive resistance: self locking. Standard payload: 100kg. Max payload: 225kg. Max speed (no payload): up to 100 mm/s. Nominal speed: 75 mm/s. Weight: 56.54kg. Footprint: 315mm x 315mm. Compressed height: 830mm. Extended height: 1700mm. Total travel: 870mm. Displacement ratio: 8.381. Motor compatibility: Integrated NEMA 34 14-mm shaft with a 5-mm key. Sensor compatibility: Integrated M18 Inductive Proximity Sensor. Byggeår: 2000. Modell: Column V2. Fabrikant: Vention.
